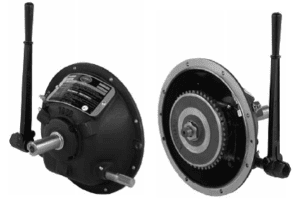

Standard CX Clutch

Standard CX Clutch

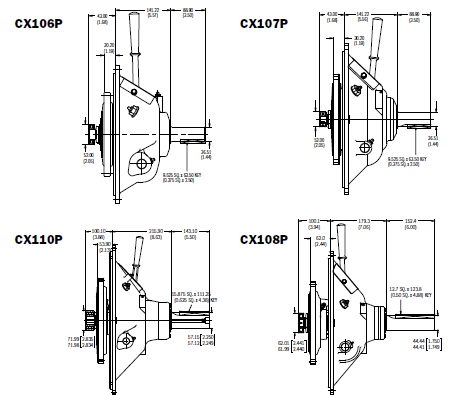

CX106P, CX107P, CX108P, CX110P, CX111P



Quality is Standard

• Available in sizes 6.5“ through 11.5“ creating suitable application torque capacity

• Ball type Main bearing suitable for in-line and side load applications

• Built in hex nut eases adjustment verification

• Optional sintered iron plates create 25% higher torque capacity*

*Not available on the CX106 & CX107



C-106-SP comes in 3 housing sizes SAE 4, 5, 6, they are also known as CX106P4, CX106P5 and CX106P6.

C-107-SP comes in 3 housing sizes SAE 4, 5, 6, they are also known as CX107P4, CX107P5 and CX107P6.

C-108-HP is available in 3 housing sizes SAE 3, 4, 5, they are also known as CX108P3, CX108P4 and CX108P5.

C-110-HP is available in these sizes SAE 1, 2, 3, 4, they could also be labeled as CX110P1, CX110P2, CX110P3 and CX110P4.

C-111-HP like the C110 could have SAE 1, 2, 3, 4 and labeled as CX111P1, CX111P2, CX111P3 & CX111P4.
