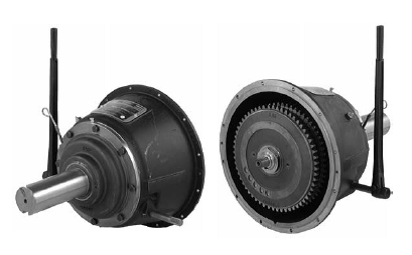

IBF 314 Clutch

Standard 3 plate IBF 14” Clutch

IB314P or IB314OP



Quality is Standard

• Available in sizes 11.5“ through 21“ creating suitable application torque capacity

• Ventilated center plates and drive ring for improved heat dissipation

• Tapered Roller Main bearings more suitable for side load applications

• Built in hex nut eases adjustment verification

• Optional sintered iron plates create 25% higher torque capacity

• Optional ball bearing throw out allows for more frequent engagements

• Optional Oil bath bearing carrier

IBF 314 Clutch

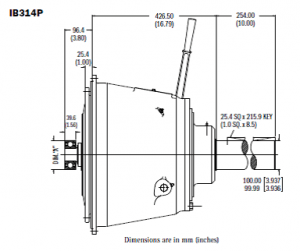

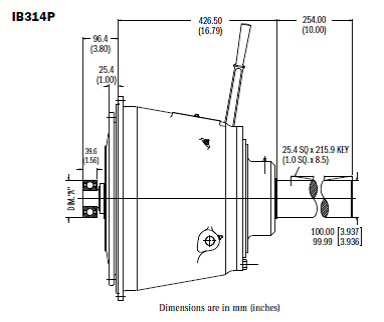

IB-314-P is available in 2 sizes SAE housing #0 with 100mm pilot and SAE housing #1 with 80mm pilot, they are also known as IB314P0 and IB314P1.



IB-314-OP is available in 2 sizes SAE housing #0 with 100mm pilot and SAE housing #1 with 80mm pilot, they are also known as IB314OP0 and IB314OP1.



Clutch IB 314 P2



















Please feel free to contact us to order a product or for more information!
