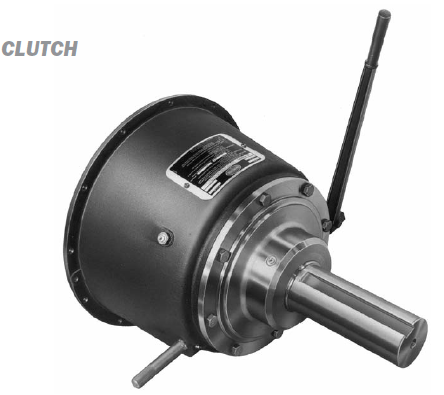

IBF 314IL CLUTCH

Standard 3 plate IBF Inline 14” Clutch

IB314IL



Quality is Standard

  • Available in sizes 11.5“ through 21“ creating suitable application torque capacity
  • Ventilated center plates and drive ring for improved heat dissipation
  • Sealed for life pilot bearing requires less maintenance
  • Built in hex nut eases adjustment verification
  • Optional sintered iron plates create 25% higher torque capacity

ibf-314-1

















IB-314-P is available in 2 sizes SAE housing #0 with 100mm pilot and SAE housing #1 with 80mm pilot, they are also known as IB314P0 and IB314P1.



IB-314-OP is available in 2 sizes SAE housing #0 with 100mm pilot and SAE housing #1 with 80mm pilot, they are also known as IB314OP0 and IB314OP1.

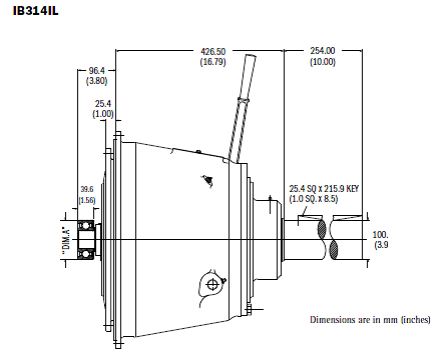

ibf-314-2















Please feel free to contact us to order a product or for more information!
