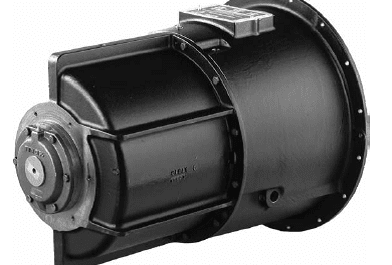

Straddle Bearing 18” Power Take-Off

PO318S



Quality is Standard

  • Available in sizes 14“ and 18“ creating suitable application torque capacity
  • Straddle bearing design allows for maximum side load capacity
  • Air actuated remotely
  • Clutch adjustment not required
  • NO Pilot Bearing promotes ease of installation
  • Optional sintered iron plates create 25% higher torque capacity



po318s

PO-318-S is available in 1 housing size SAE 0, they are also known as PO318S0.



po318s2

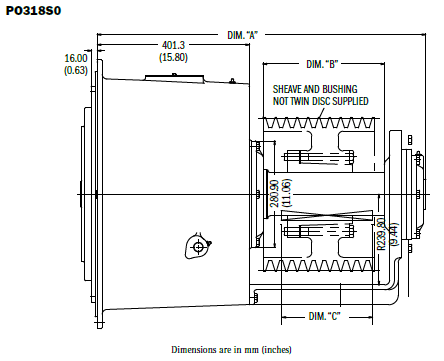

PO318S002: Dim A: 867.6 mm (34.15”) Dim B: 320.7 mm (12.62”)

Dim C: 25.6 x 241.5 mm (1 x 9.5”)



PO318S003: Dim A: 911.9 mm (35.9”) Dim B: 365 mm (14.37”)

Dim C: 25.6 x 266.7 mm (1 x 10.5”)



Please feel free to contact us to order a product or for more information!
